  admin > 10-11-2024, 02:56 AM

  EOBD-Facile-car diagnostic Download link: EOBD Facile: OBD 2 Car Scanner - Google Play

  Step1:

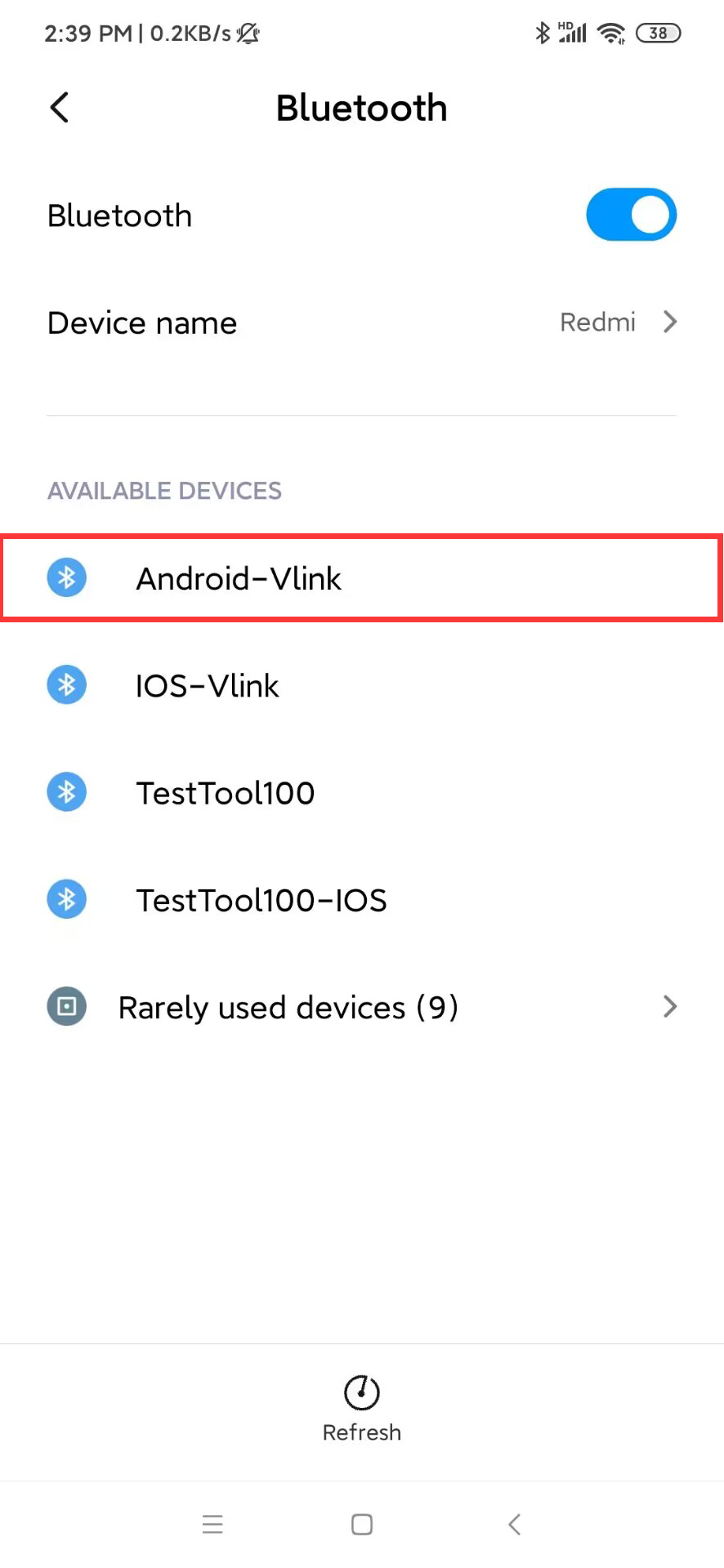

  Open your phone's Bluetooth Settings, search for and tap "Android-Vlink".





  Step2:
  A request pairing prompt will be generated when pairing, enter the pairing code "1234" and click "OK".





  Step3:
  Successfully paired to the Bluetooth device "Android-Vlink".





  Step4:

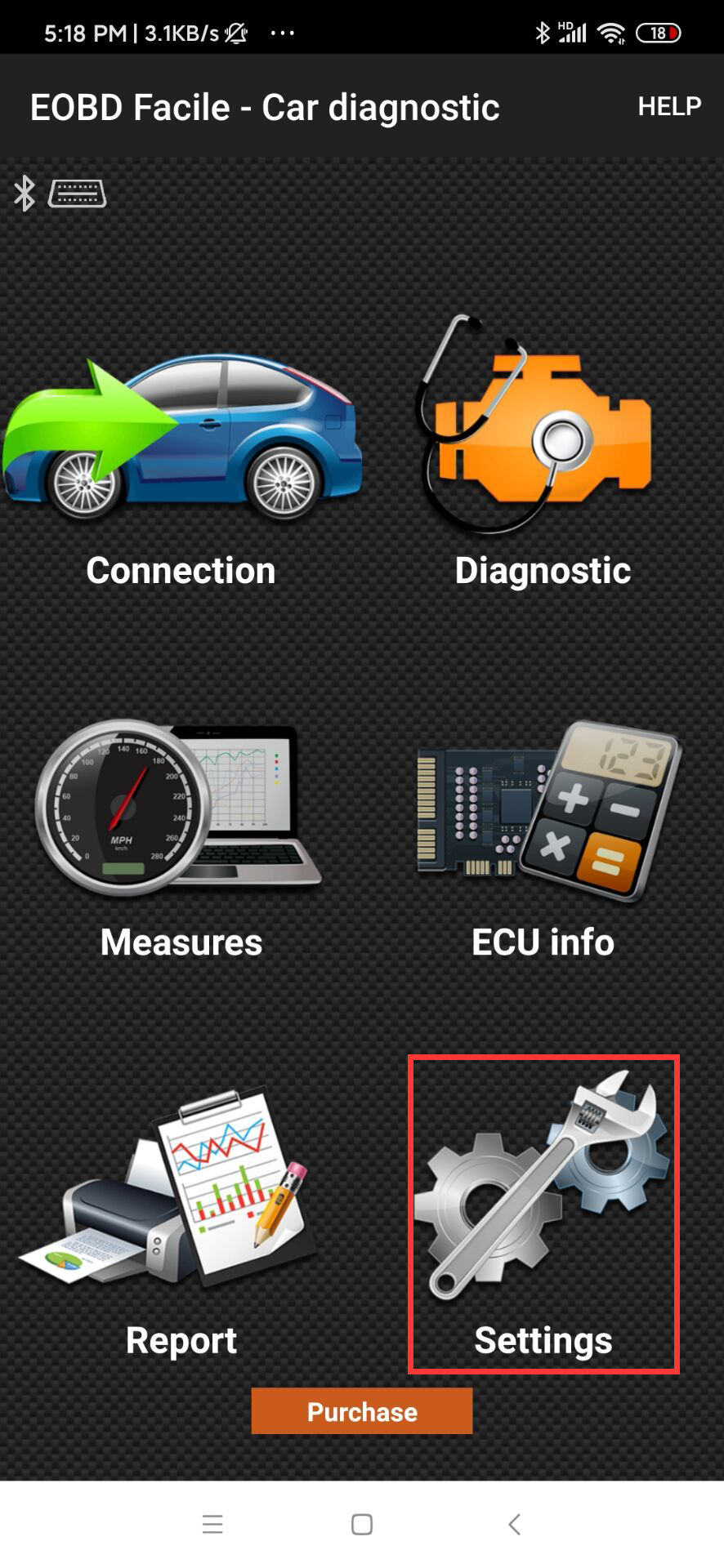

  Open the app and click on "Settings".





  Step5:

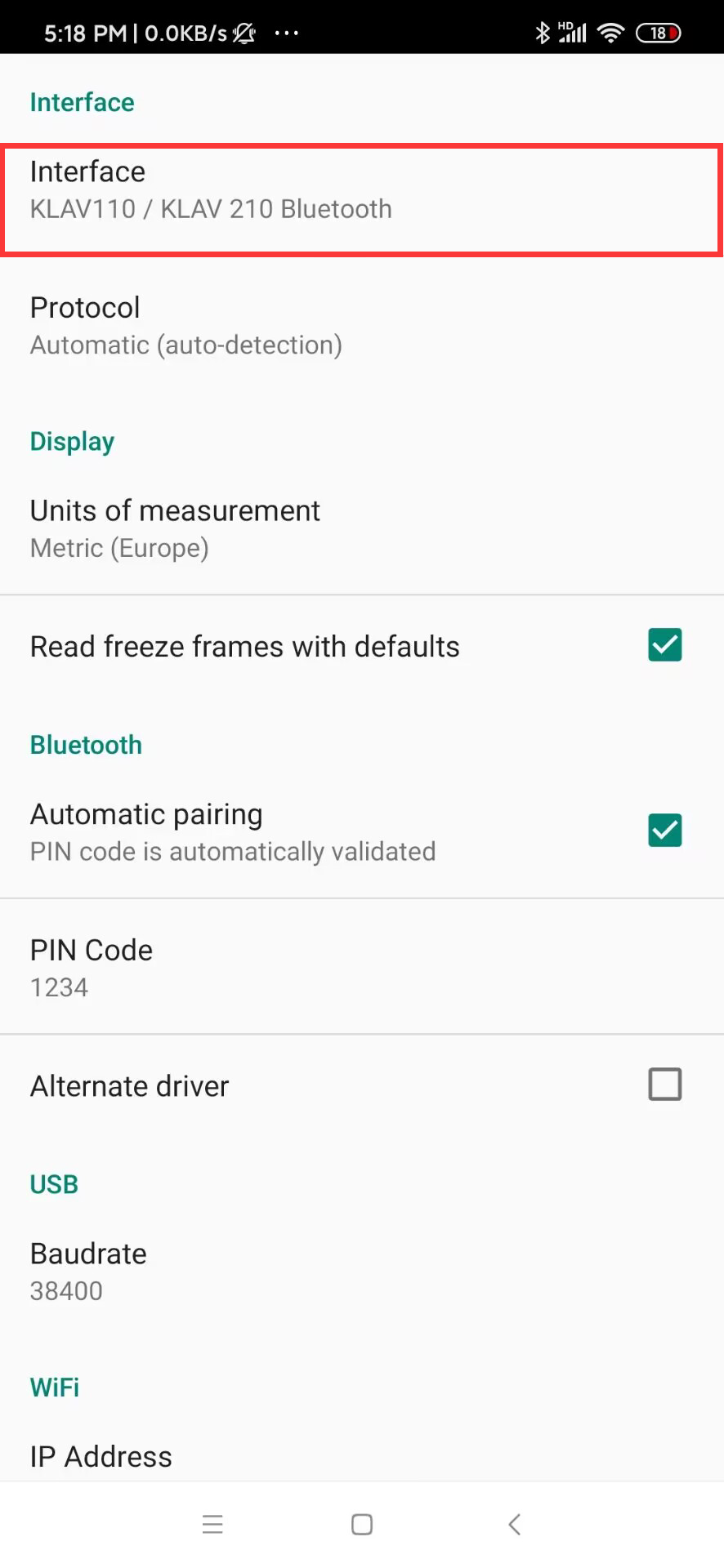

  Click on:"Interface".





  Step6:

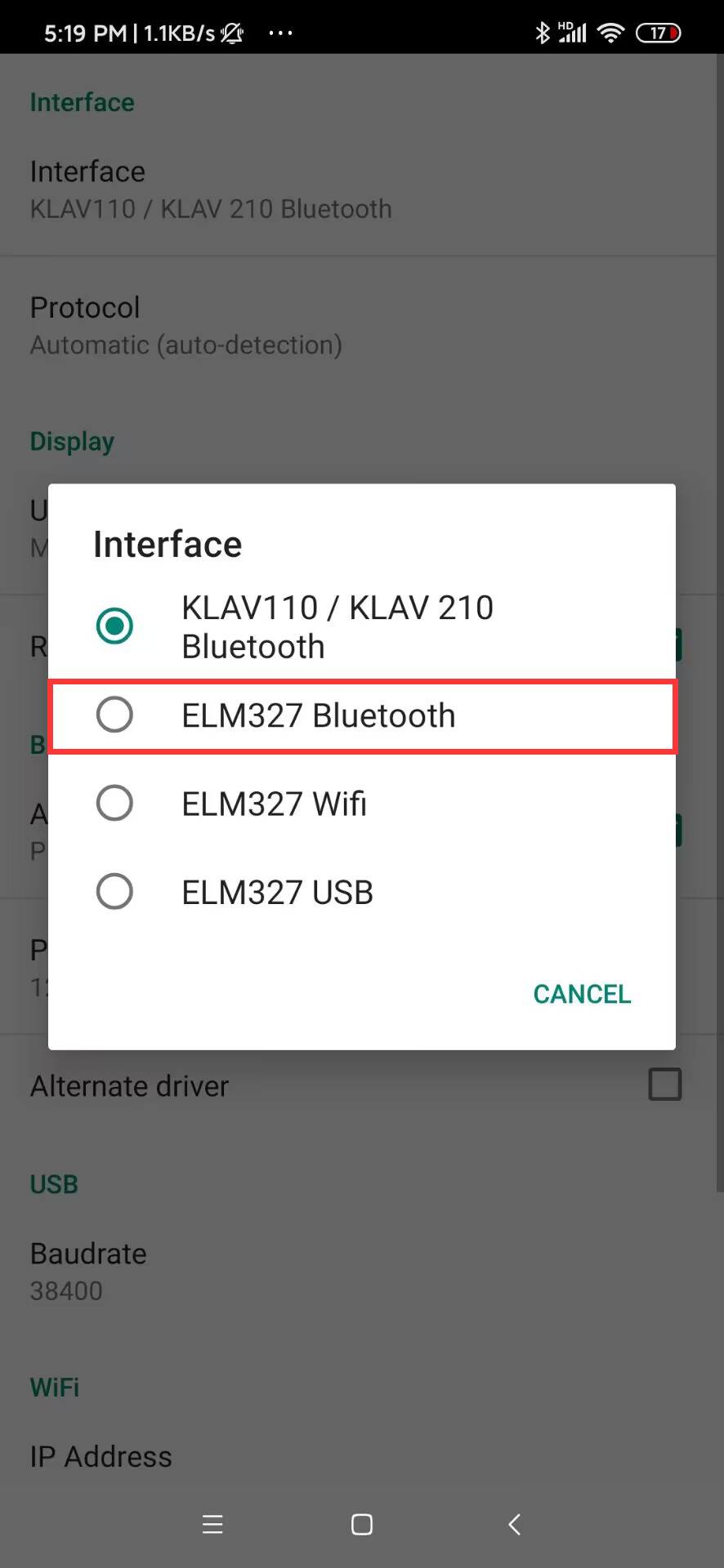

  Select: "ELM327 Bluetooth".





  Step7:

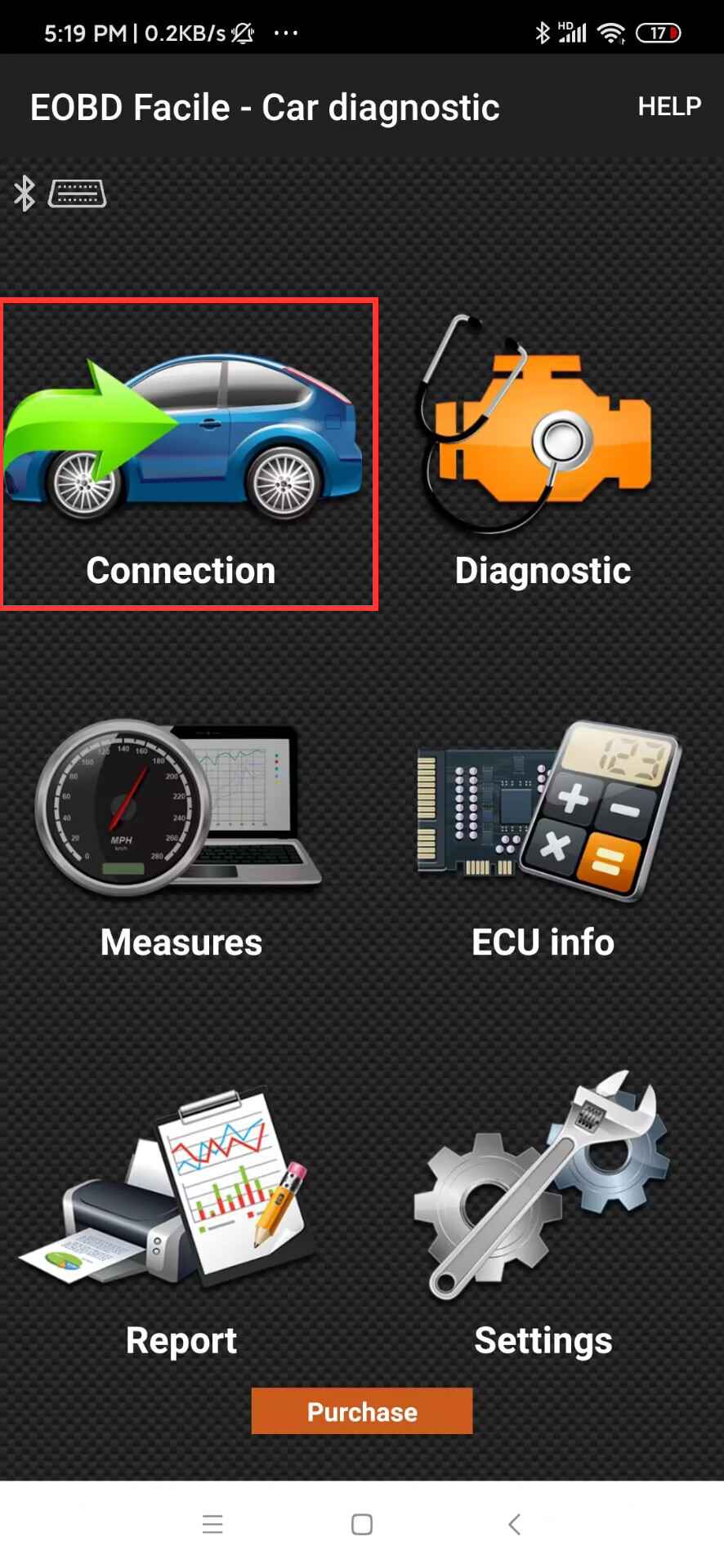

  After setting up the interface, return to the homepage. Click on "Connection".





  Step8:

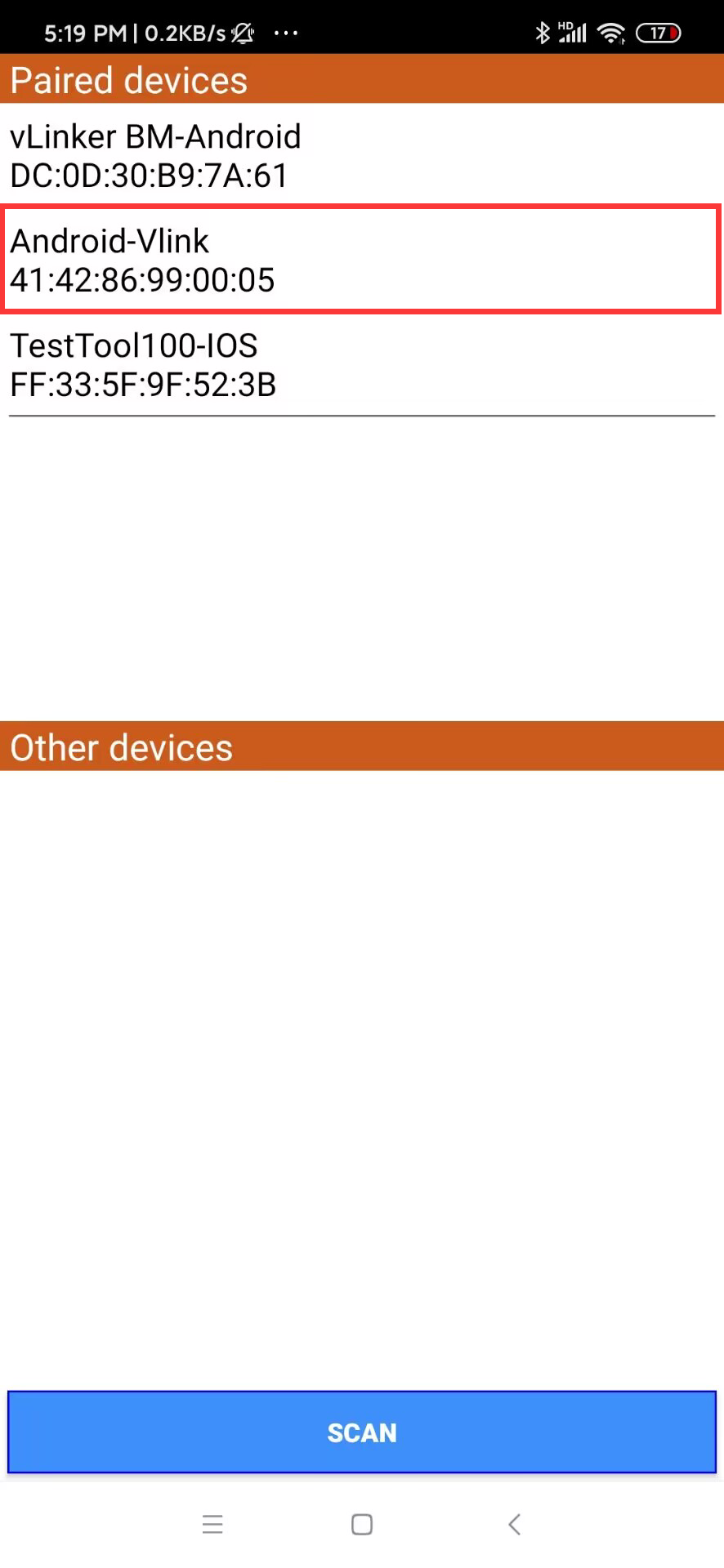

  Select the paired device "Android-Vlink".





  Step9:

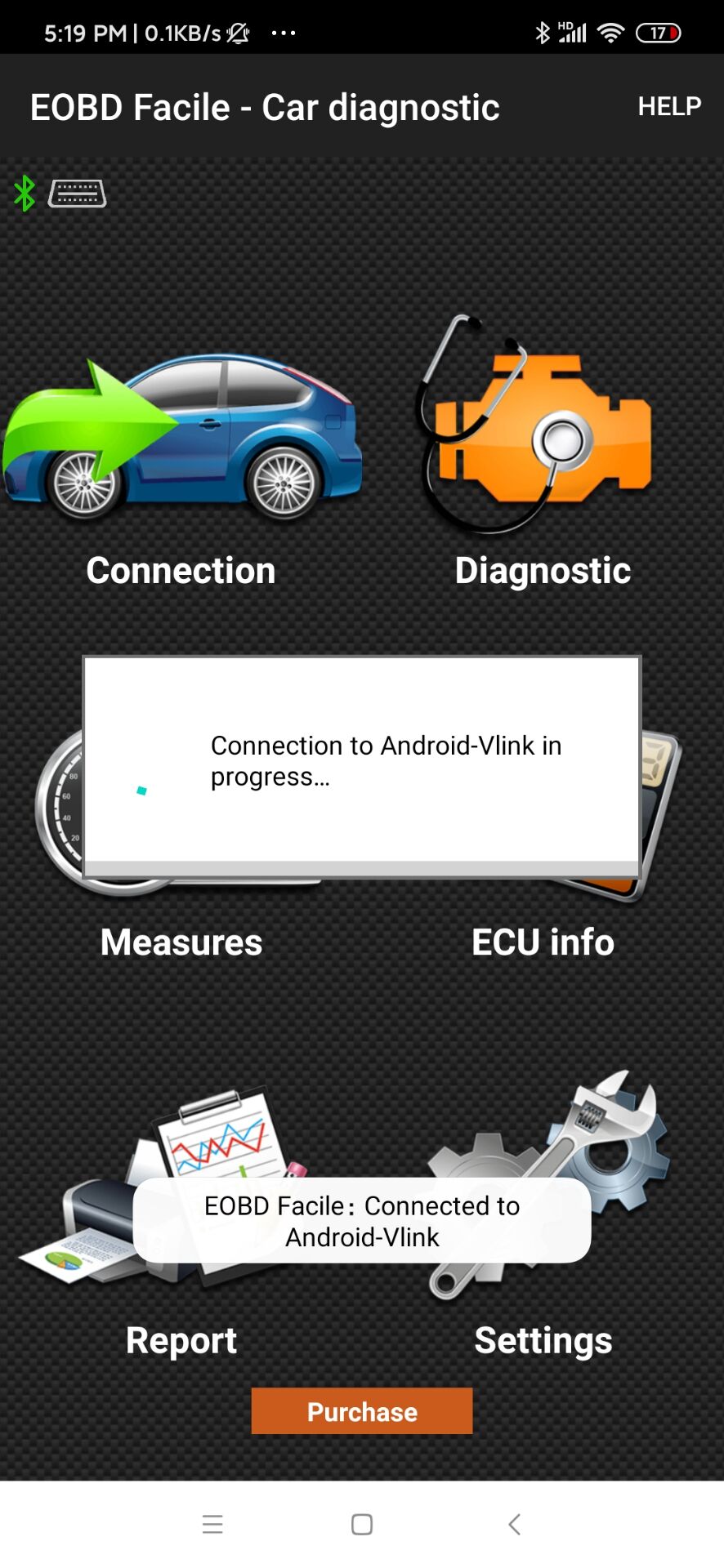

  Wait for the app to connect to the iCar Pro 2S.

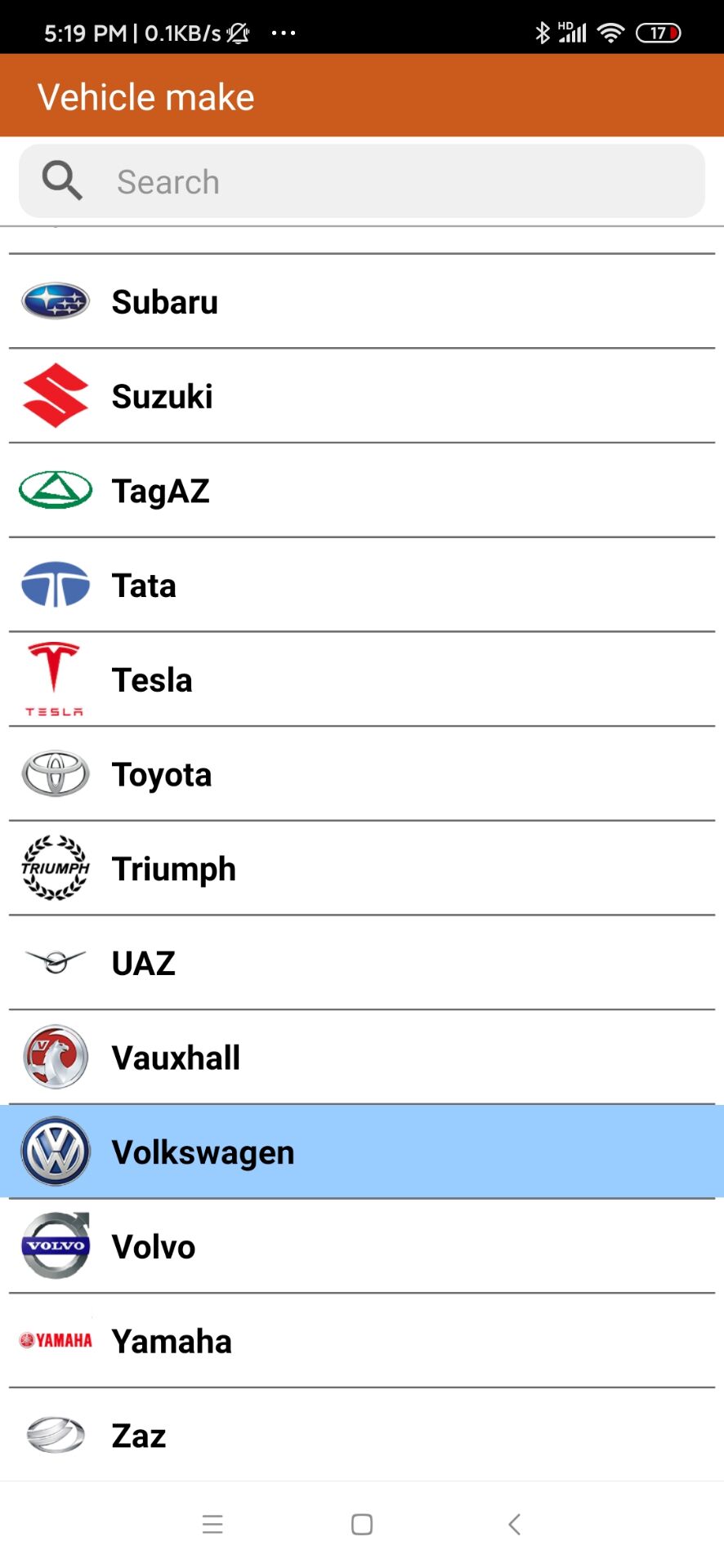

  Step10:
  Select your car model.

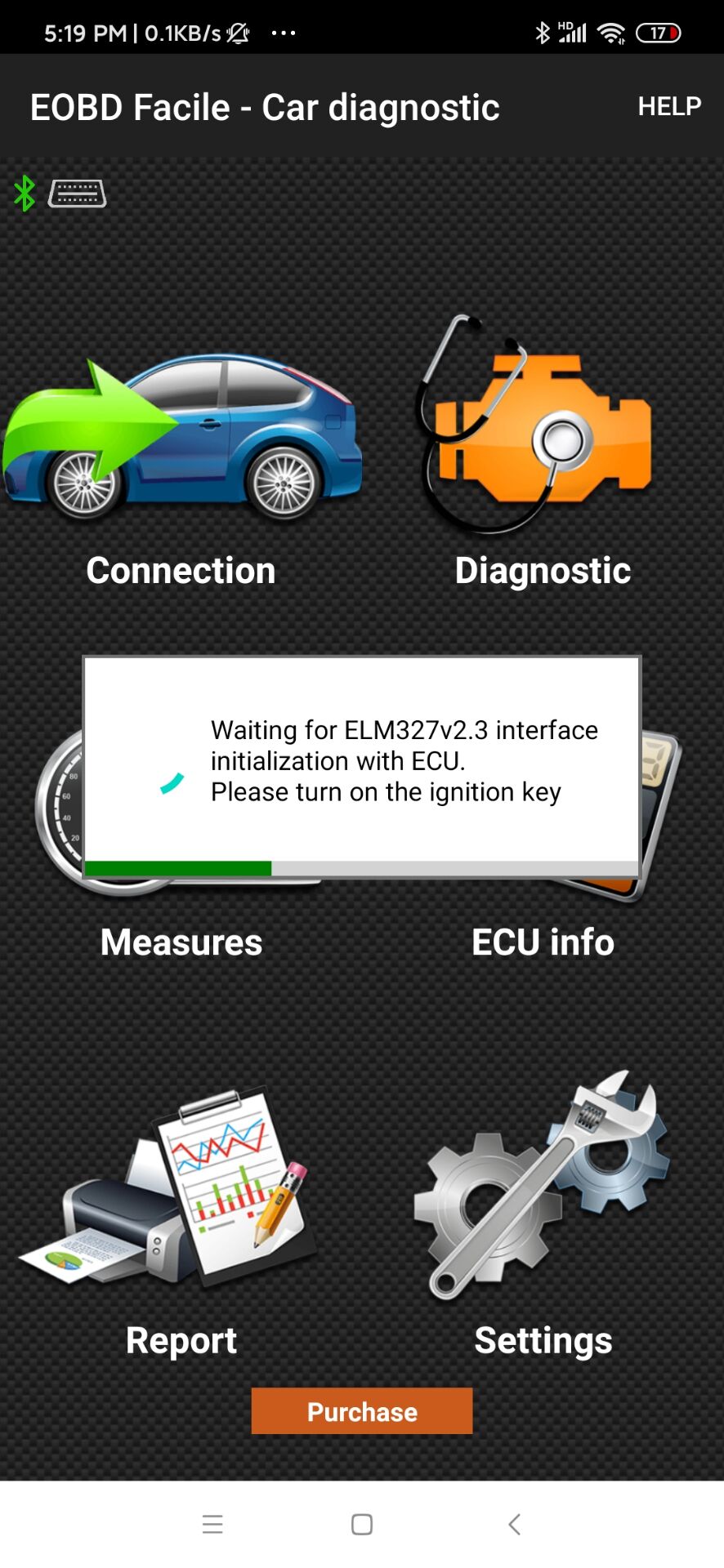

  Step11:
  Wait for the app to connect to the car ECU.





  Step12:

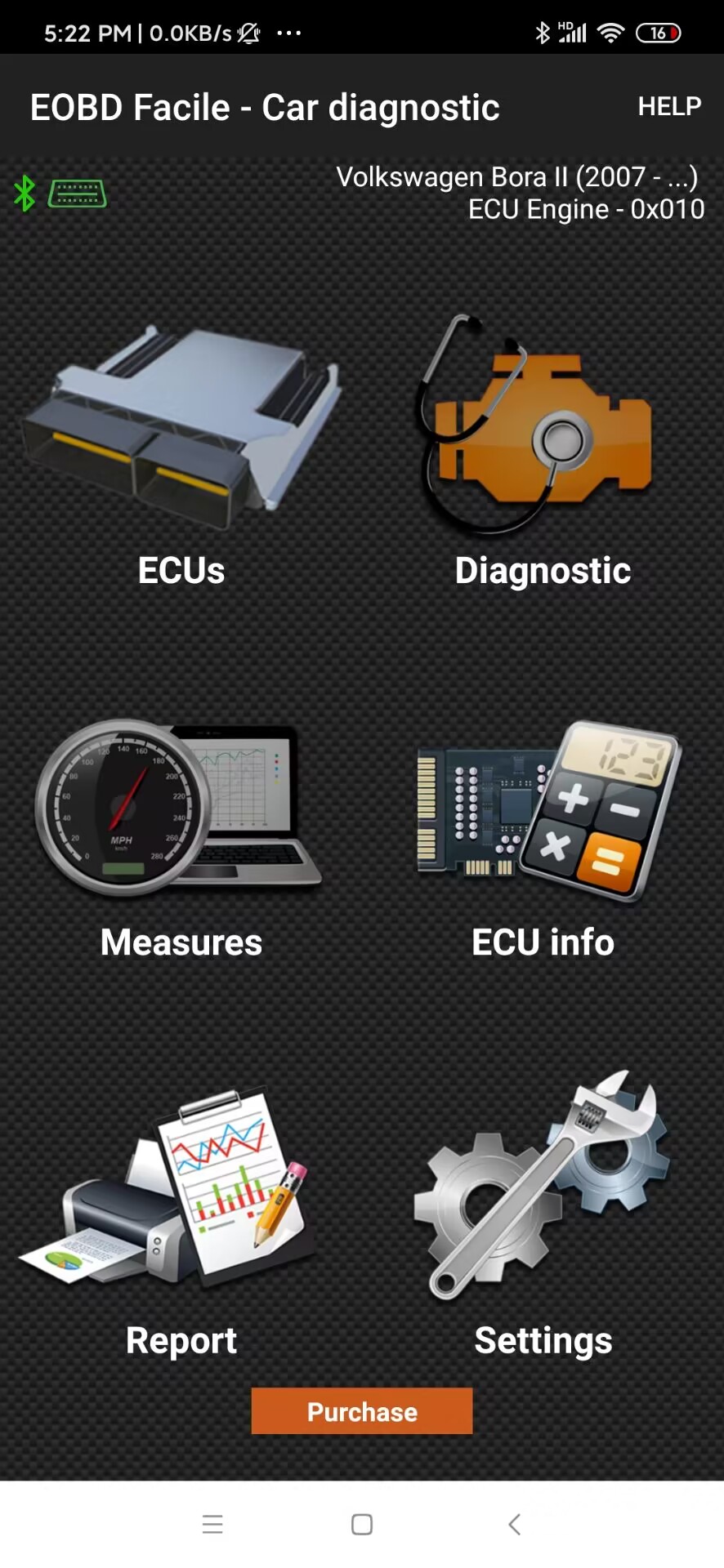

  Connected successfully.
