  admin > 01-03-2024, 02:31 AM

  Car Scanner ELM327 OBD2 download link: App Store - Car Scanner ELM OBD2” (apple.com)

  NOTE:
  Just enable Bluetooth settings on your iOS device.
  DO NOT Need to connect Bluetooth Name on iOS device.
  Then connect the Bluetooth device name in the OBD app setting.

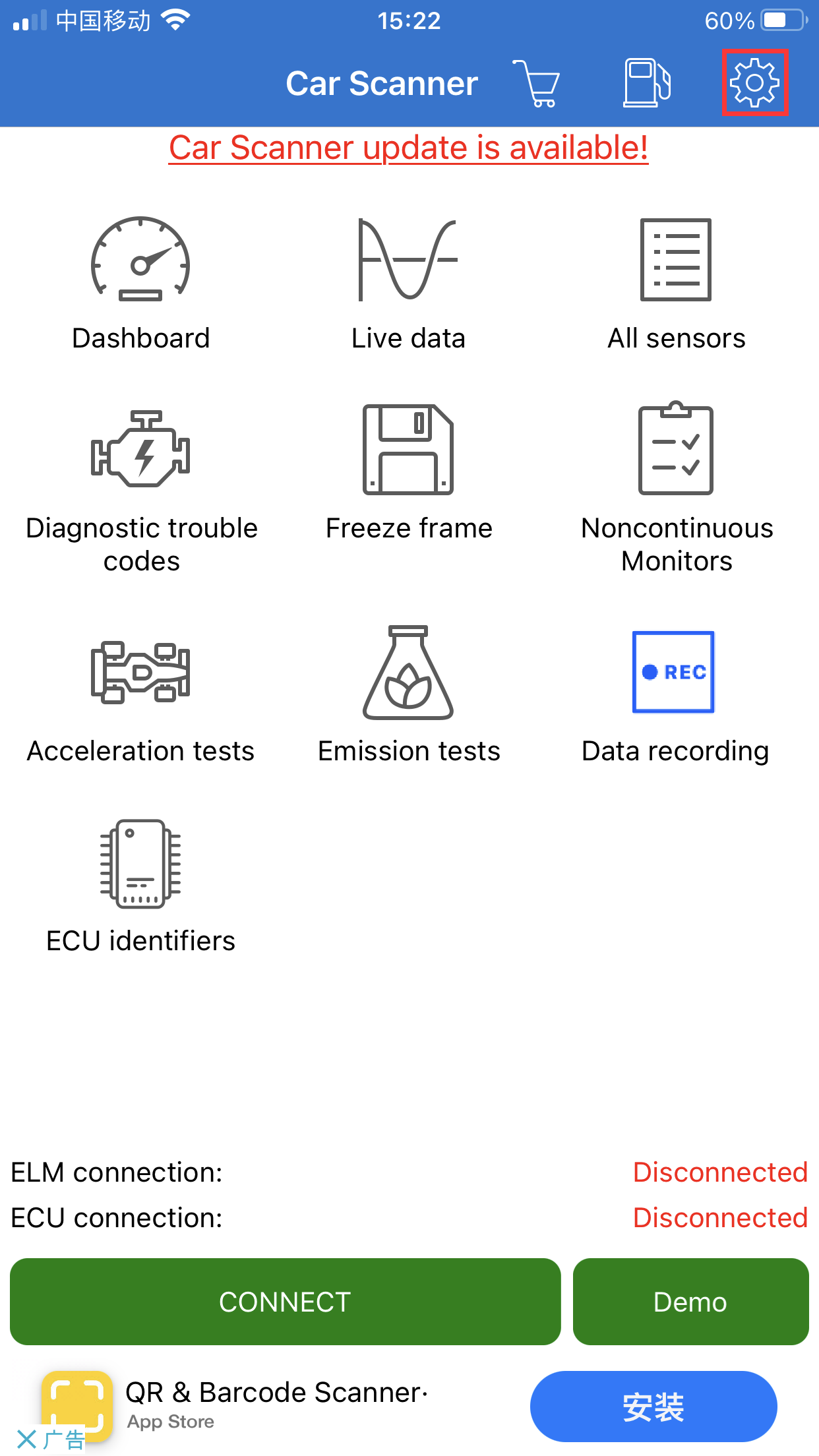

  Step1:
  Click the "Settings" button in the top right corner.

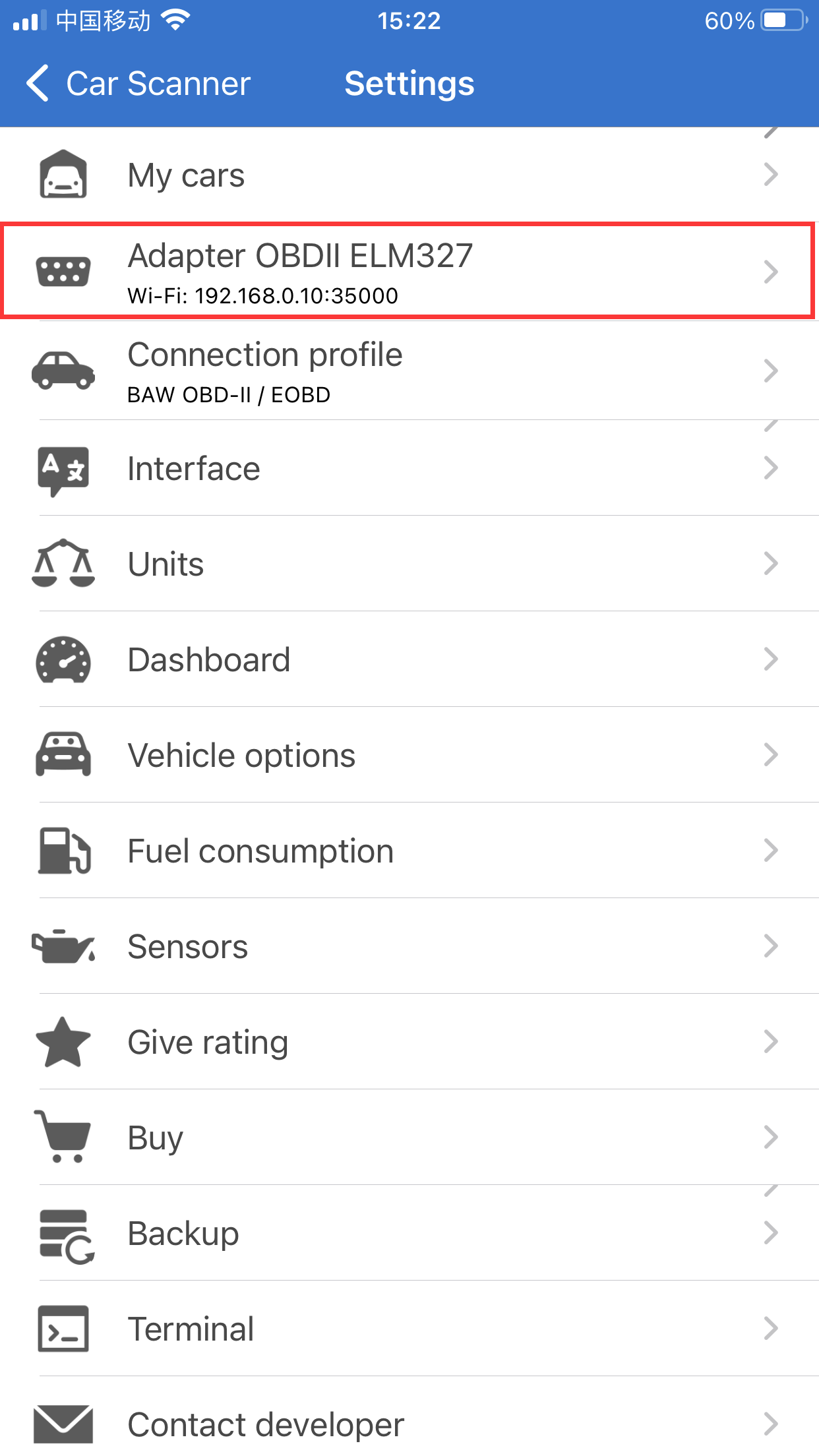

  Step2:
  Click on "Adapter OBDII ELM327".

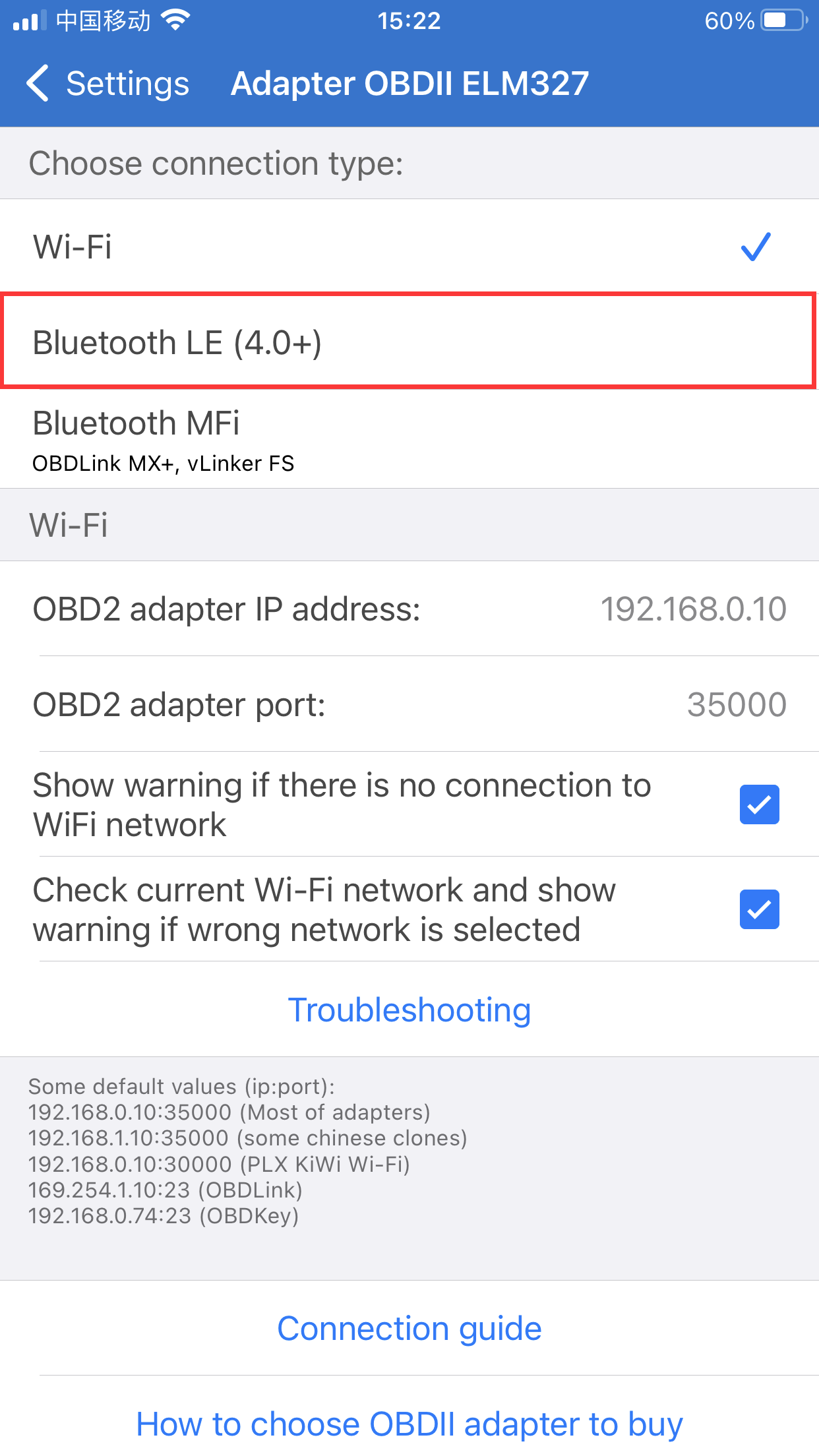

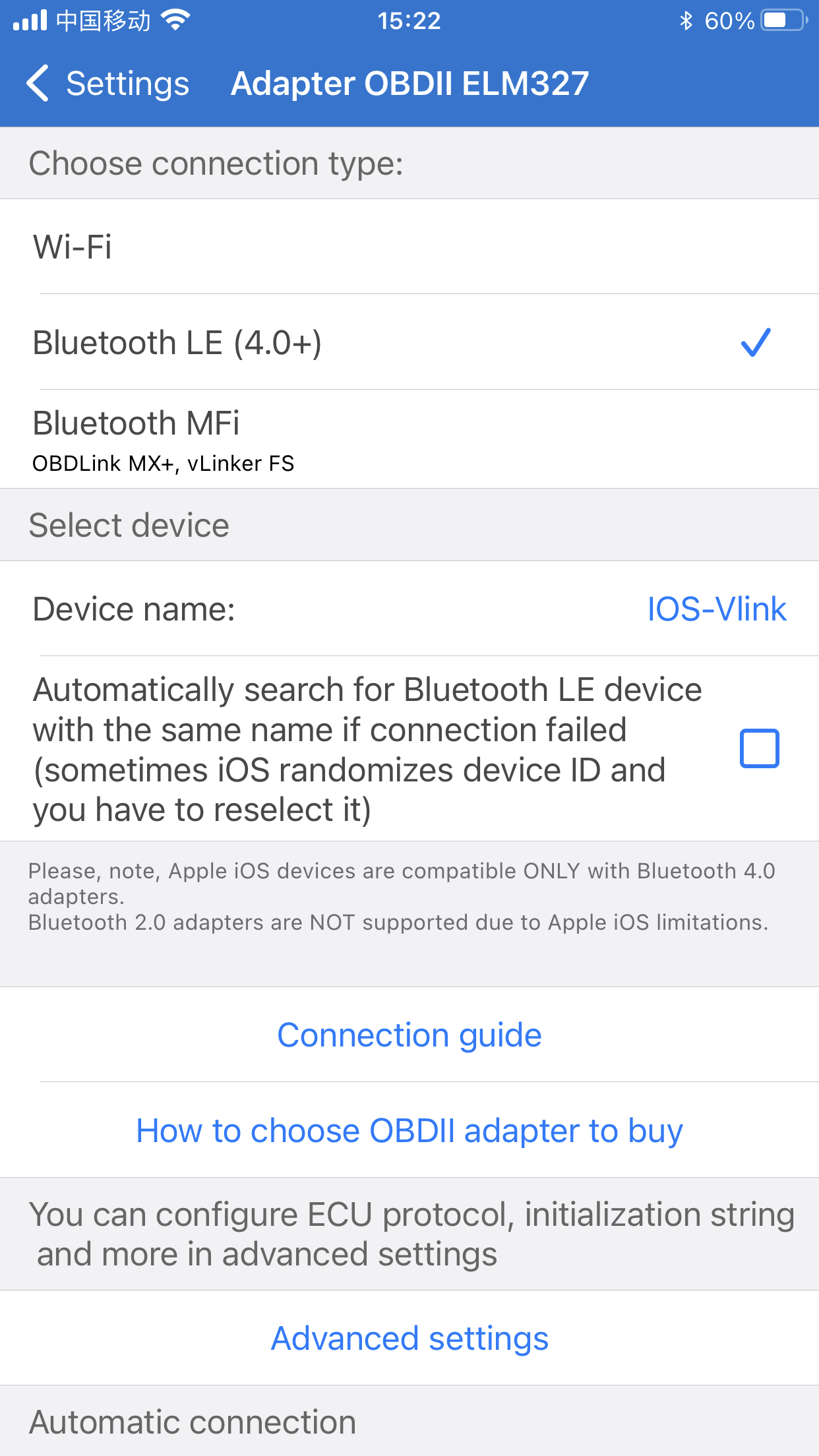

  Step3:
  Select "Bluetooth LE(4.0+)" as the connection type.





  Step4:
  Click on "Device name"

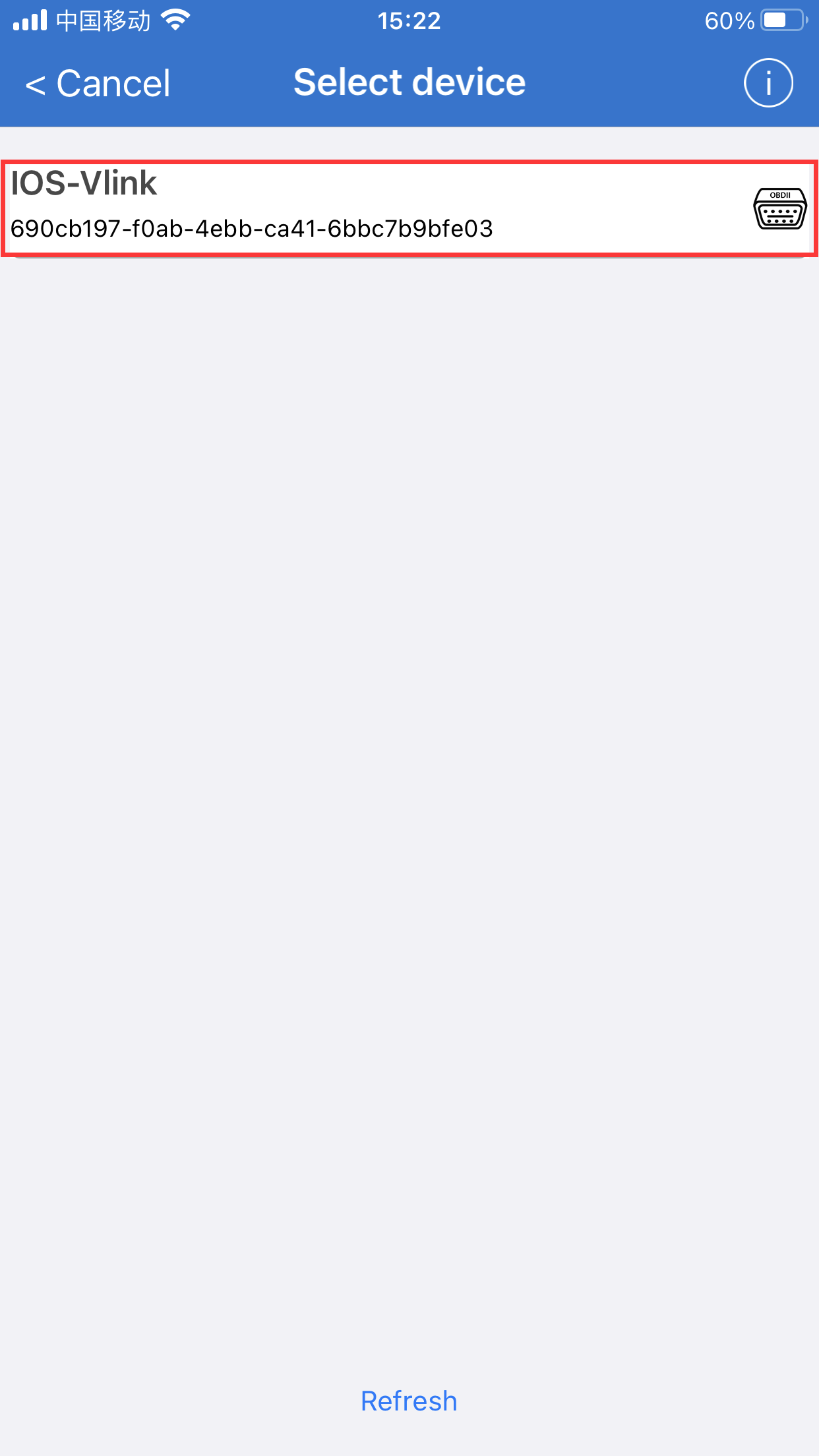

  Step5:
  Select "IOS-Vlink".





  Step6:
  After selecting the correct device, return to the home page.

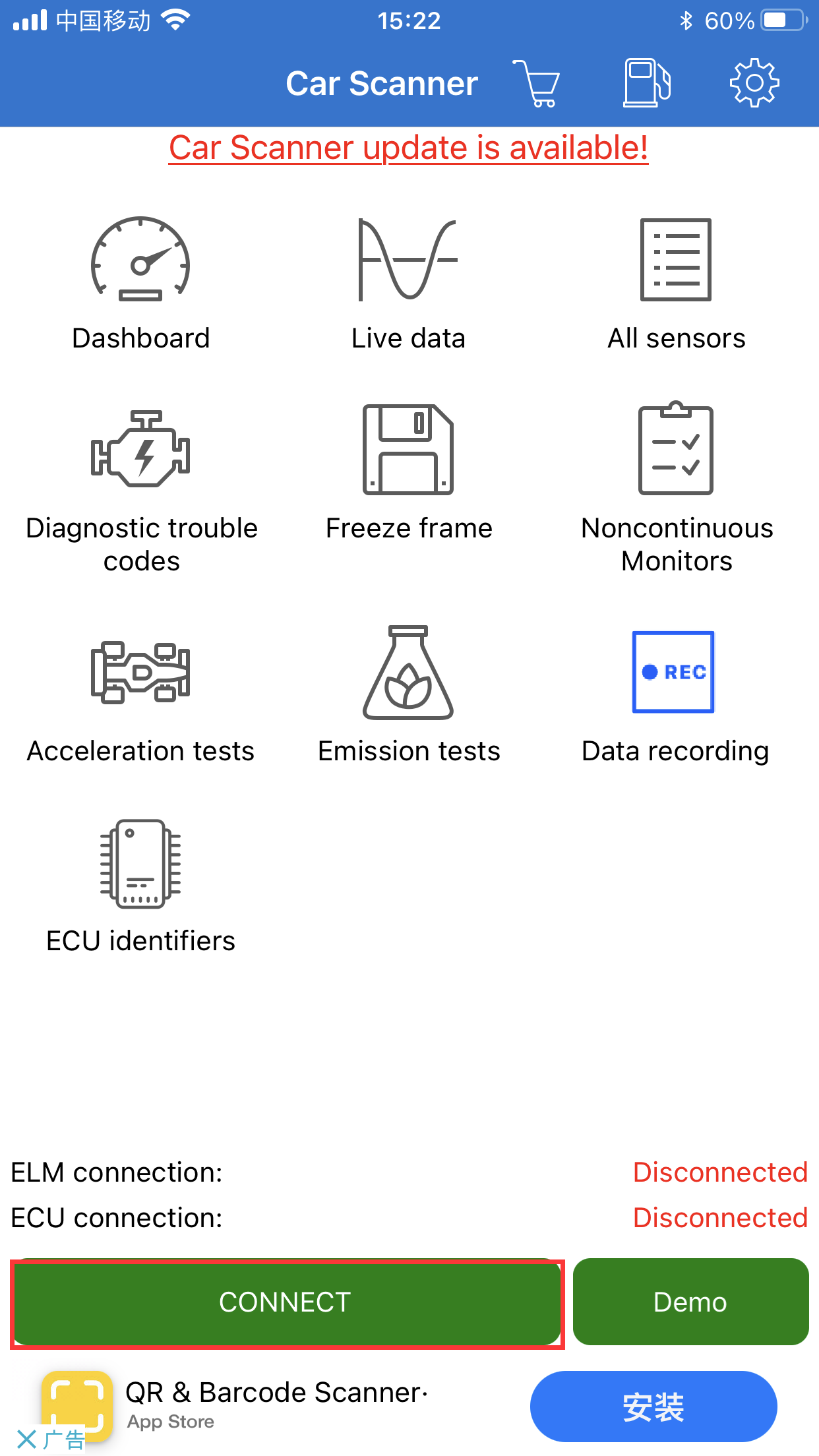

  Step7:
  Click on "CONNECT".

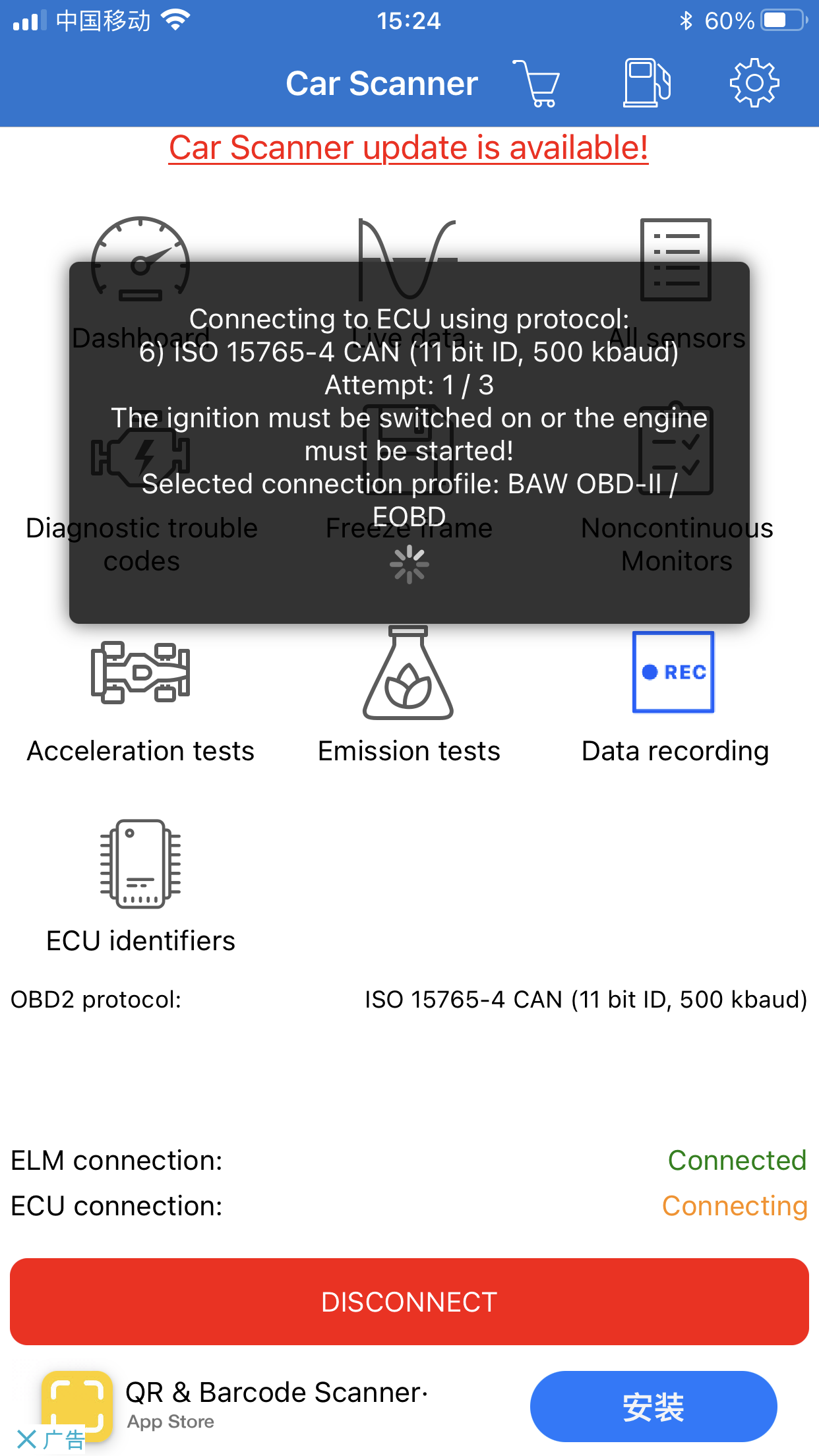

  Step8:
  Wait for the app to connect to the vehicle.

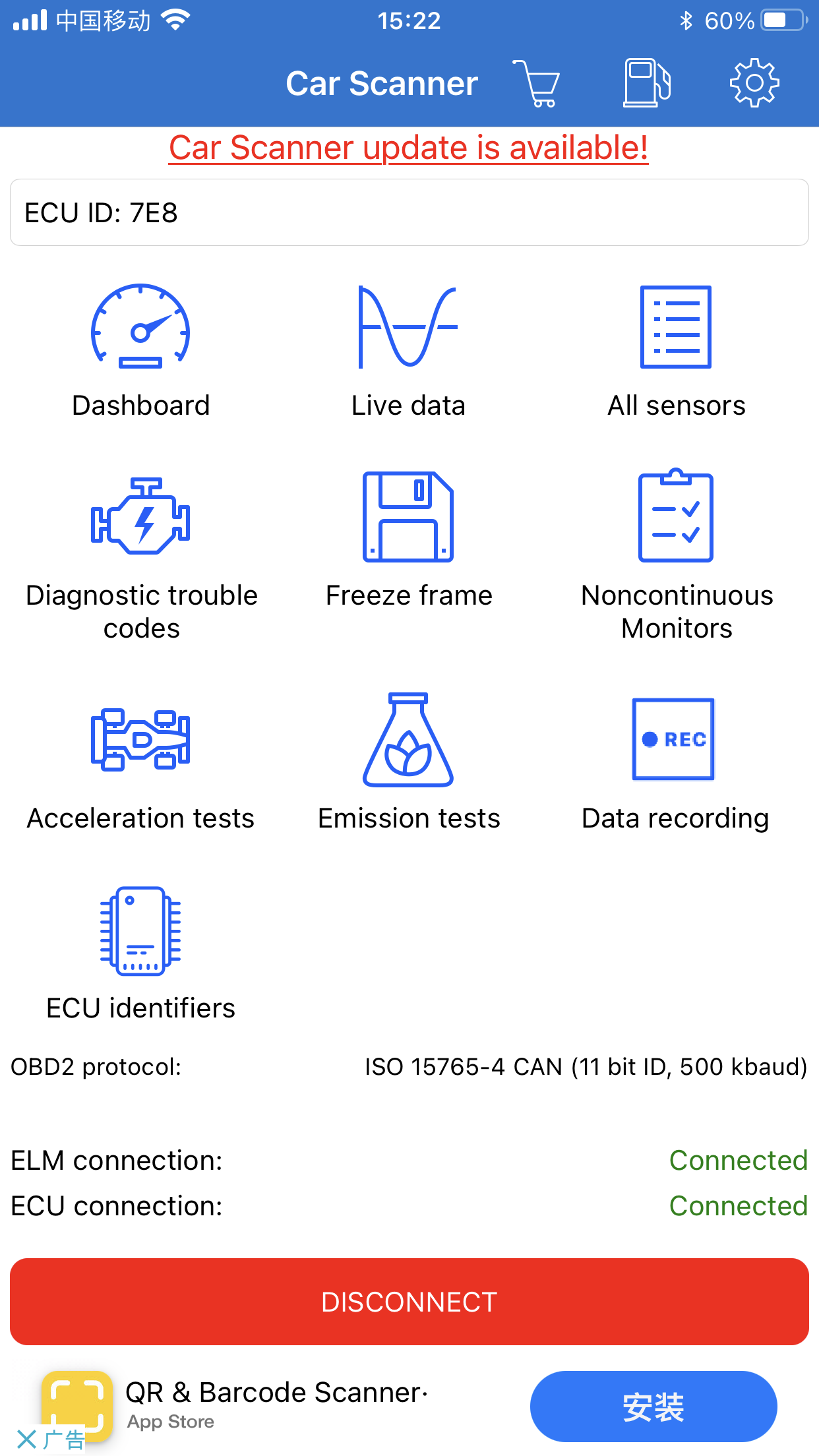

  Step9:
  Connection successful

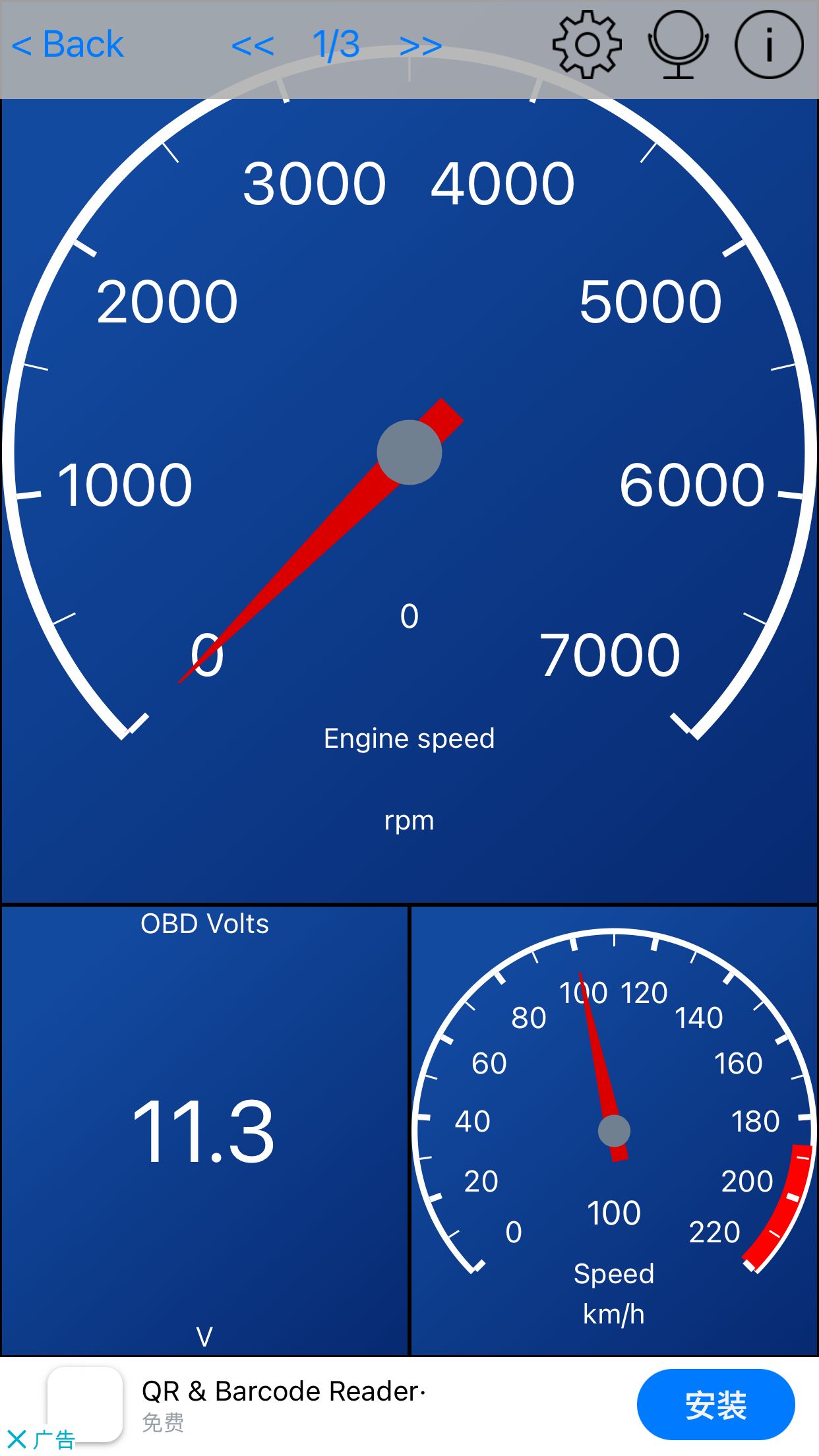

  Step10:
  If the app communicates successfully with the car, you can open the function you want to select.
